Arduino Smart Home Automation

, Edit

Baca Juga






Arduino Smart Home Automation

Open Source Arduino Smart Home Automation

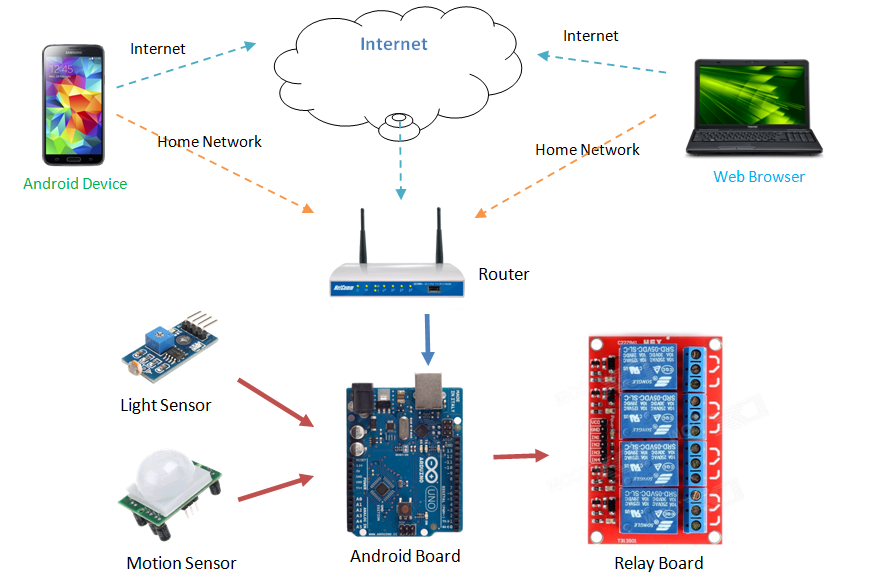

System Diagram



Hardware Feature
  •         8 Digital Output Control
  •         4 Analog Input Sensor
  •         Control via TCP/IP or Internet
  •         Control with Web Browser or Android App


Software Feature
  •          Arduino Web Server TCP/IP ( LAN )
  •          Set your device name and sensor name
  •          Sensor Control Output Automatically.
  •          Set your IP Address and port
  •         Real time status
Hardware Device
  1.         Arduino MEGA Board or compatible board.
  2.     Ethernet (WIZnet 5100) Shield
  3.     Relay Board
  4.     Light Sensor or Motion Sensor or other

Wiring Diagram


Device1  Arduino Output PIN 2
Device2  Arduino Output PIN 3
Device3  Arduino Output PIN 4
Device4  Arduino Output PIN 5
Device5  Arduino Output PIN 6
Device6  Arduino Output PIN 7
Device7  Arduino Output PIN 8
Device8  Arduino Output PIN 9

Analog Input Sensor1   -  Arduino PIN A0  to Control Output 5
Analog Input Sensor2   -  Arduino PIN A1  to Control Output 6
Analog Input Sensor3   -  Arduino PIN A2  to Control Output 7
Analog Input Sensor4   -  Arduino PIN A3  to Control Output 8


Android App. ( Free Version )






https://play.google.com/store/apps/details?id=arduino.smarthome.automation



Control With Web Browser
If you don’t want use android app. You can control with Web Browser also.


or Web Browser on Mobile Device.




Arduino WebServer Source Code



Mirror Site : http://android-arduinocontrol.blogspot.com/2014/08/android-arduino-smart-home-automation.html

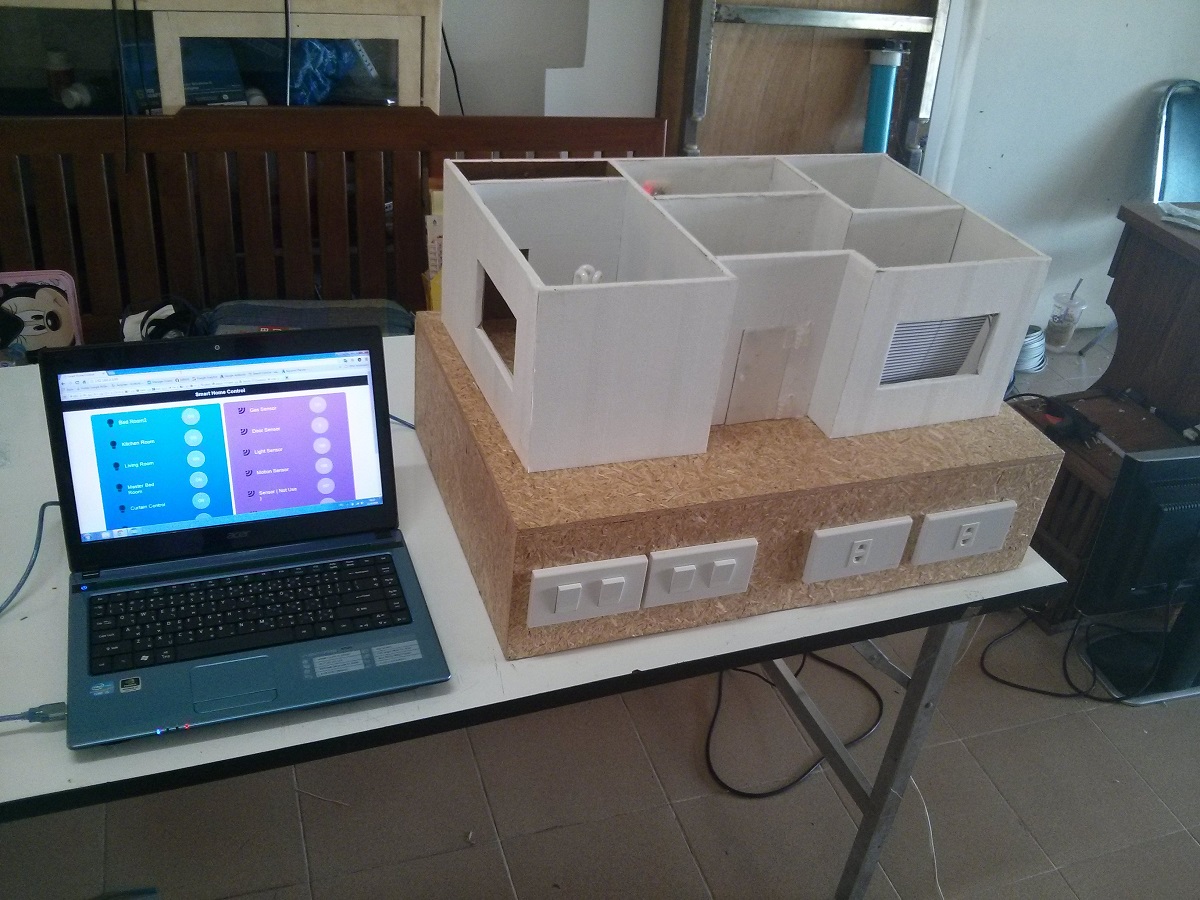

Install and Testing in Home





Some Problem about IP Address
I use TP-Link Wireless Router so it give gateway  to 192.168.0.1

Then I use IP Address for Arduino Code to 192.168.0.199


IF YOUR GATEWAY NOT THE SAME MY GATEWAY.

YOU NEED CHANGE YOUR ARDUINO CODE For IP ADDRESS.

see below...


#include <SPI.h>
#include <Ethernet.h>

// Define measurement variables
floatamplitude_current;
float effective_value;
float effective_voltage = 230; // Set voltage to 230V (Europe) or 110V (US)
float effective_power;
float zero_sensor;

// Variables to be exposed to the API
int power;

// Enter a MAC address and IP address for your controller below.
// The IP address will be dependent on your local network:
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x2D };

byte gateway[] = { 192, 168, 0, 1 };              //   Your Gateway
byte subnet[] = { 255, 255, 255, 0 }; //
IPAddress  ip(192,168,0,199);                       // Your IP Address
