Arduino Bluetooth Control Smart Home
with Firmata
This project you can control 8 channel relay outputs via Bluetooth with Android device and Arduino board + Bluetooth Module.
About Arduino code use Firmata Library so, you don't need to write any arduino code just flash to arduino board because Firmata library is built-in in Arduino IDE already.
System Diagram
Hardware
You can change Arduino Pin by Setting Arduino Pin.
This project you can control 8 channel relay outputs via Bluetooth with Android device and Arduino board + Bluetooth Module.
About Arduino code use Firmata Library so, you don't need to write any arduino code just flash to arduino board because Firmata library is built-in in Arduino IDE already.
System Diagram
Hardware
1. Arduino Board or compatible Board.
2. Bluetooth Module ( HC-04,HC-05 or HC-06 )
3. Relay Board
Option
Regulator 5 V. DC 1 A for Relay Module
2. Bluetooth Module ( HC-04,HC-05 or HC-06 )
3. Relay Board
Option
Regulator 5 V. DC 1 A for Relay Module

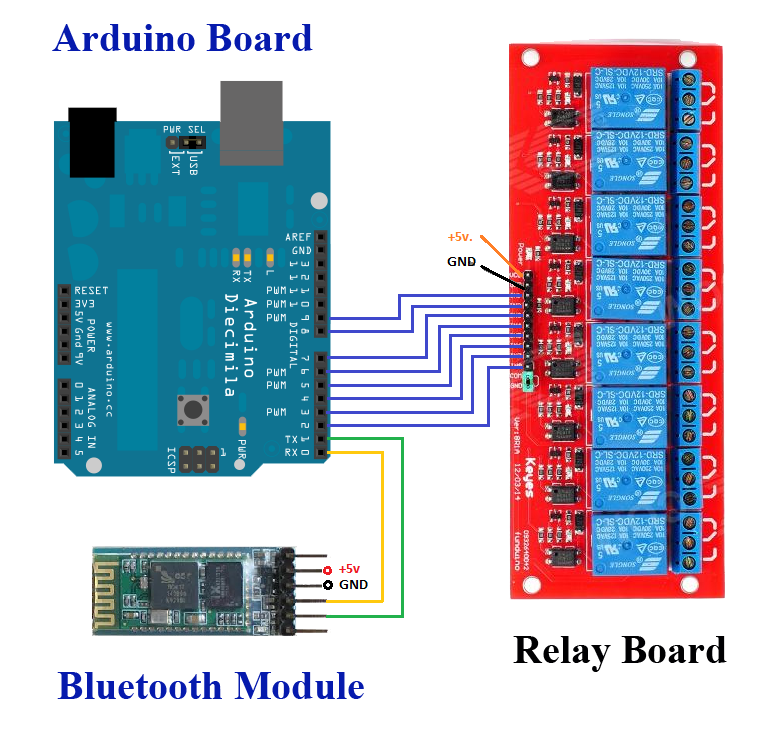

Wiring Diagram
Arduino Pin 2 to Relay CH.1
Arduino Pin 3 to Relay CH.2
Arduino Pin 4 to Relay CH.3
Arduino Pin 5 to Relay CH.4
Arduino Pin 6 to Relay CH.5
Arduino Pin 7 to Relay CH.6
Arduino Pin 8 to Relay CH.7
Arduino Pin 9 to Relay CH.8
Arduino Pin 0 ( Rx ) to Bluetooth Module Pin
Arduino Pin 1 ( Tx ) to Bluetooth Module Pin
Arduino Pin 2 to Relay CH.1
Arduino Pin 3 to Relay CH.2
Arduino Pin 4 to Relay CH.3
Arduino Pin 5 to Relay CH.4
Arduino Pin 6 to Relay CH.5
Arduino Pin 7 to Relay CH.6
Arduino Pin 8 to Relay CH.7
Arduino Pin 9 to Relay CH.8
Arduino Pin 0 ( Rx ) to Bluetooth Module Pin
Arduino Pin 1 ( Tx ) to Bluetooth Module Pin
You can change Arduino Pin by Setting Arduino Pin.
Software
Arduino Sketch
Arduino Code use Firmata Library.
How to program Firmata code to Arduino Board
http://microcontrollerkits.blogspot.com/2014/12/arduino-usb-control-with-firmata.html
Arduino Sketch
Arduino Code use Firmata Library.
How to program Firmata code to Arduino Board
http://microcontrollerkits.blogspot.com/2014/12/arduino-usb-control-with-firmata.html
Android App on Google Play
Download App on Google Play
https://play.google.com/store/apps/details?id=arduino.bluetooth.control
All My App on Google Play
Amphan Account
Digital2u Account

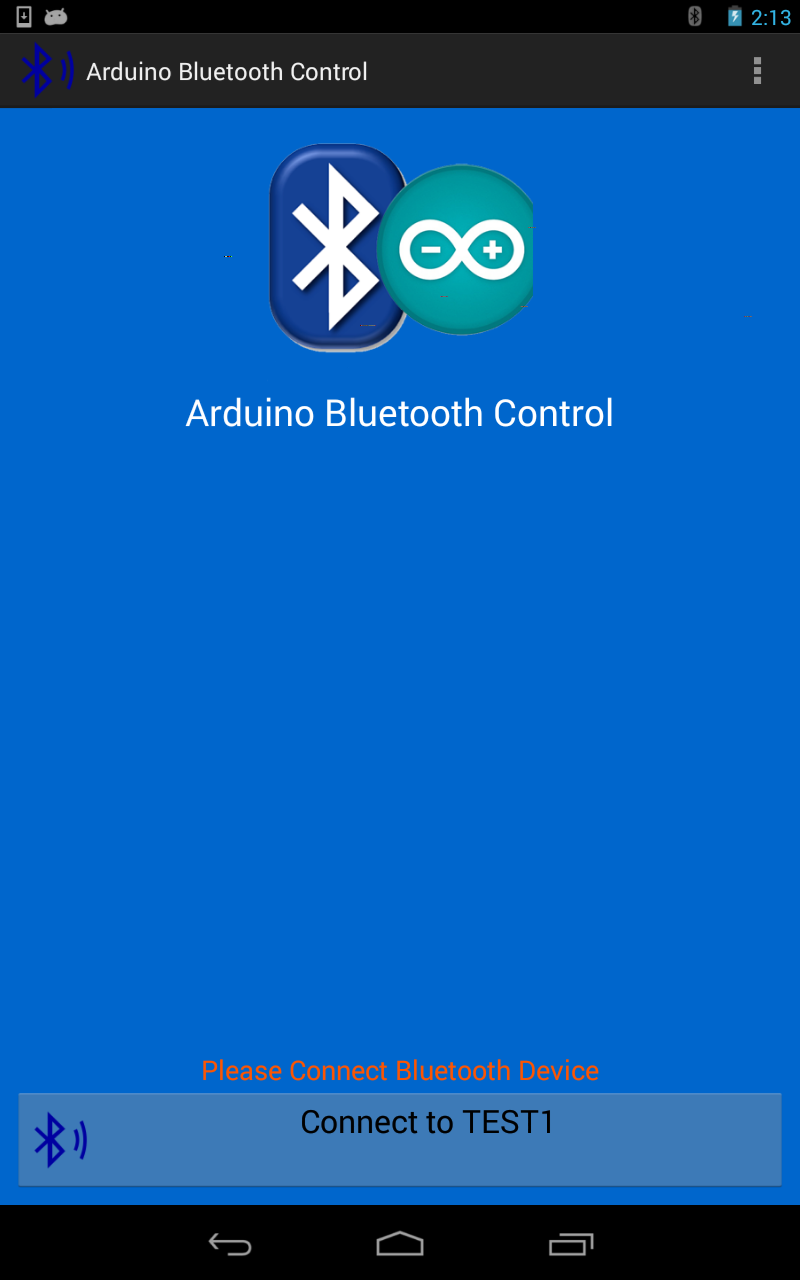

Arduino Bluetooth Control App Manual
1.Bluetooth Setting
you must setting and pairing Bluetooth Module with android device first
when Bluetooth setting is done.Open App and connect to Bluetooth.
2.Change your device name and Arduino Output pin
you can use option menu or setting on each channel.
Use Option Menu to Setting
you can delete some channel ( Set to default mean set back to 8 channel )
Multi-Screen design
My Blog
Raspberry Pi Project
My Website
http://softpowergroup.net/
email : info@softpowergroup.net Tel .081-6452400
Google+ https://plus.google.com/+SoftpowergroupNetThailand/
https://play.google.com/store/apps/details?id=arduino.bluetooth.control
All My App on Google Play
Amphan Account
Digital2u Account
Arduino Bluetooth Control App Manual
1.Bluetooth Setting
you must setting and pairing Bluetooth Module with android device first
when Bluetooth setting is done.Open App and connect to Bluetooth.
2.Change your device name and Arduino Output pin
you can use option menu or setting on each channel.
Use Option Menu to Setting
you can delete some channel ( Set to default mean set back to 8 channel )
Multi-Screen design
My Blog
Raspberry Pi Project
My Website
http://softpowergroup.net/
email : info@softpowergroup.net Tel .081-6452400
Google+ https://plus.google.com/+SoftpowergroupNetThailand/
